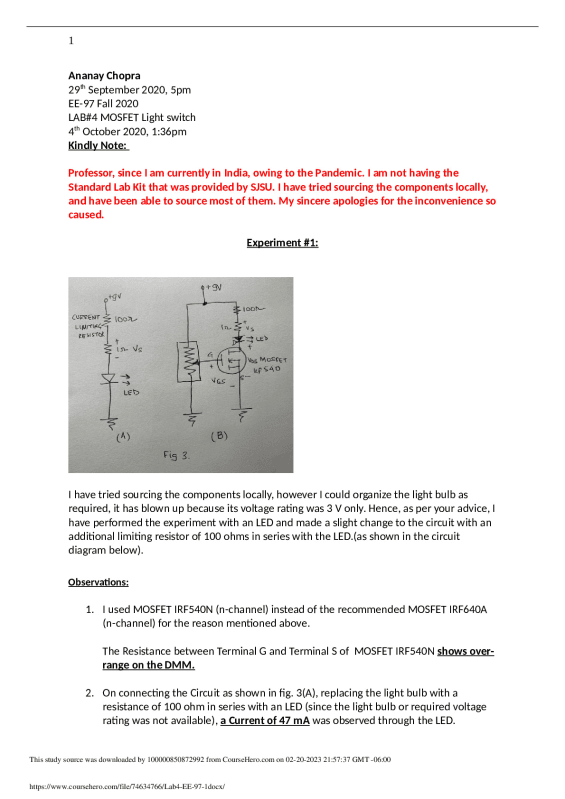

• Ananay Chopra 29th September 2020, 5pm EE-97 Fall 2020 LAB#4 MOSFET Light switch 4 th October 2020, 1:36pm Kindly Note: Professor, since I am currently in India, owing to the Pandemic. I am not having the Standard Lab Kit that was provided by SJSU. I have tried sourcing the components locally, and have been able to source most of them. My sincere apologies for the inconvenience so caused. Experiment #1: I have tried sourcing the components locally, however I could organize the light bulb as required, it has blown up because its voltage rating was 3 V only. Hence, as per your advice, I have performed the experiment with an LED and made a slight change to the circuit with an additional limiting resistor of 100 ohms in series with the LED.(as shown in the circuit diagram below). Observations: 1. I used MOSFET IRF540N (n-channel) instead of the recommended MOSFET IRF640A (n-channel) for the reason mentioned above. The Resistance between Terminal G and Terminal S of MOSFET IRF540N shows overrange on the DMM. 2. On connecting the Circuit as shown in fig. 3(A), replacing the light bulb with a resistance of 100 ohm in series with an LED (since the light bulb or required voltage rating was not available), a Cu
