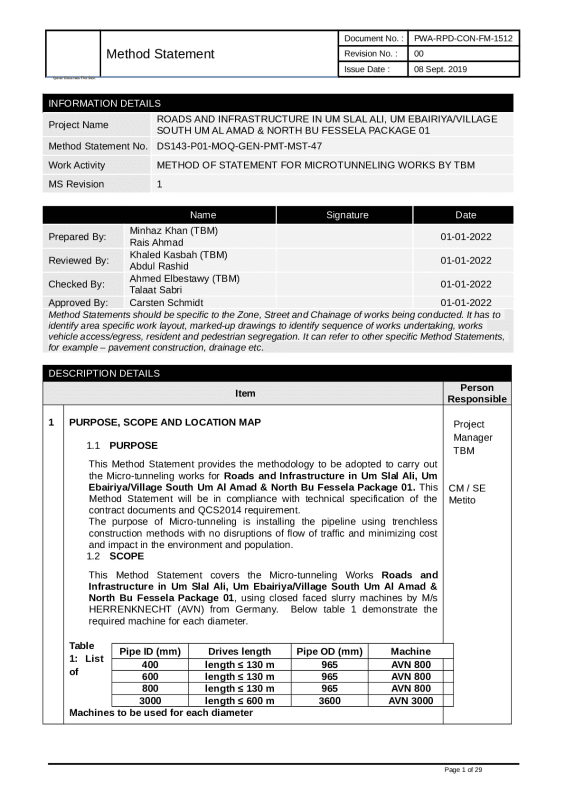

• Method Statement Document No. : PWA-RPD-CON-FM-1512 Revision No. : 00 Issue Date : 08 Sept. 2019 INFORMATION DETAILS Project Name ROADS AND INFRASTRUCTURE IN UM SLAL ALI, UM EBAIRIYA/VILLAGE SOUTH UM AL AMAD & NORTH BU FESSELA PACKAGE 01 Method Statement No. DS143-P01-MOQ-GEN-PMT-MST-47 Work Activity METHOD OF STATEMENT FOR MICROTUNNELING WORKS BY TBM MS Revision 1 Name Signature Date Prepared By: Minhaz Khan (TBM) Rais Ahmad 01-01-2022 Reviewed By: Khaled Kasbah (TBM) Abdul Rashid 01-01-2022 Checked By: Ahmed Elbestawy (TBM) Talaat Sabri 01-01-2022 Approved By: Carsten Schmidt 01-01-2022 Method Statements should be specific to the Zone, Street and Chainage of works being conducted. It has to identify area specific work layout, marked-up drawings to identify sequence of works undertaking, works vehicle access/egress, resident and pedestrian segregation. It can refer to other specific Method Statements, for example – pavement construction, drainage etc. DESCRIPTION DETAILS Item Person Responsible 1 PURPOSE, SCOPE AND LOCATION MAP 1.1 PURPOSE This Method Statement provides the methodology to be adopted to carry out the Micro-tunneling works for Roads and Infrastructure in Um Slal Ali, Um Ebairiya/Village South Um Al Amad & North Bu Fessela Package 01. This Method Statement will be in compliance with technical specification of the contract documents and QCS2014 requirement. The purpose of Micro-tunneling is installing the pipeline using trenchless construction methods with no disruptions of flow of traffic and minimizing cost and impact in the environment and population. 1.2 SCOPE This Method Statement covers the Micro-tunneling Works Roads and Infrastructure in Um Slal Ali, Um Ebairiya/Village South Um Al Amad & North Bu Fessela Package 01, using closed faced slurry machines by M/s HERRENKNECHT (AVN) from Germany. Below table 1 demonstrate the required machine for each diameter. Table 1: List of Machines to be used for each diameter Project Manager TBM CM / SE Metito Page 1 of 29 Pipe ID (mm) Drives length Pipe OD (mm) Machine 400 length ≤ 130 m 965 AVN 800 600 length ≤ 130 m 965 AVN 800 800 length ≤ 130 m 965 AVN 800 3000 length ≤ 600 m 3600 AVN 3000 Method Statement Document No. : PWA-RPD-CON-FM-1512 Revision No. : 00 Issue Date : 08 Sept. 2019 DESCRIPTION DETAILS Item Person Responsible The purpose of this method statement is to outline the Subcontractor’s Micro tunneling works on this project. Scope of works:  Install RC jacking pipes ID400, ID600, ID800 and ID3000 by Microtunneling method.  Annular space grouting between jacking pipe and ground periphery once the pipework has been visually inspected / tested. 1.3 ABBREVIATIONS 2 MANDATORY INDUCTION, TRAINING, SUPERVISION AND INSTRUCTION REQUIREMENTS Occupational Health, Safety & Security Management and Control: All personnel will carry out their Health & Safety responsibilities in accordance with the Project OHSS plan and the Construction Environmental Management Plan (CEMP). The OHSS plan institutes the overall mechanism for the risk management process with regard to the project. 2.1 TRAINING External Training is required for the following:  First aiders to have 1st Aid at work training qualifications  Crane operators and riggers should have sufficient and relevant training.  All other operatives should have relevant experience in their field of works.  Fire wardens will have relevant training.  Specific training will be provided t
